JainFlex

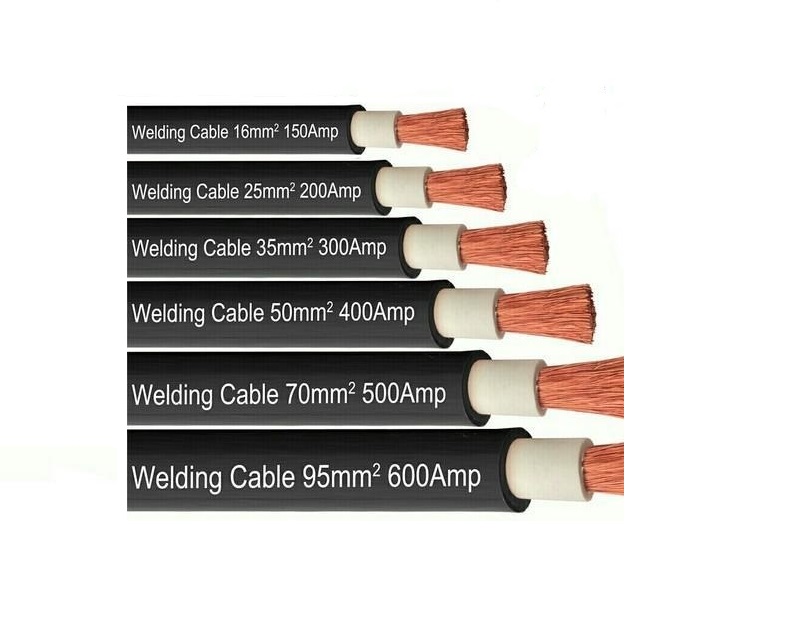

NBR/NBR Welding Cables

Applications

Low Voltage leads for connection to automatic or hand held metal arc welding electrodes and for earthling return leads, the transmission of high currents from the electric welding machine to the welding tool.

Features

• NBR Rubber compound which gives excellent flexibility, strength and durability to the cable.
• Resistance to oil, chemicals, abrasion, cuts etc.
• Excellent ozone and weather resistant
• Temperature range: -30°c to max.+90°C
• Generally confirms to CENELEC HD 22-6 31, VDE 0282, IEC 245-6, IS 473, BS 638-4<

Cable Structure

Insulation:

Double insulated flexible Nitrile Rubber (NBR) insulated

Color Code:

Orange & Black Jacket *Any other Color on specific request can also be supplied

Standard length cable packing :

Coils 100, 200,300 and 500, 1000m. In wooden drums

Technical Specification

NBR/NBR welding cable
Nominal cross sectional area of conductor	Nominal insln thickness	Nominal sheath thickness	Overall cable diameter		Max conductor resistance at 20°C	Current rating
						Welding applications					Non Welding Application
						Duty Cycle
			Lower limit	Upper limit		100%	85%	60%	30%	20%
sqmm	mm	mm	mm	mm	Ω/km	amp	amp	amp	amp	amp	amp
10	1.2	1.8	7.8	10	1.91	105	115	135	190	235	110
16	1.2	1.9	9	11.5	1.21	135	145	175	245	302	138
25	1.4	2	10	13	0.780	180	195	230	330	402	187
35	1.4	2.2	11.5	14.5	0.554	225	245	290	410	503	233
50	1.6	2.4	13	17	0.386	285	310	370	520	637	295
70	1.6	2.6	15	19	0.272	355	385	460	650	794	372
95	1.8	2.8	17.5	21.5	0.206	430	470	560	790	961	449
120	1.8	3	19.5	24	0.161	500	540	650	910	1118	523
150	2	3.2	21.5	26	0.129	580	620	740	1040	1297	608
185	2.2	3.4	23	29	0.106	660	715	850	1200	1476	690
240	2.4	3.5	27	32	0.0801	710	770	916	1296	1587	744
